Briggs & Stratton Etek disassembly

etek1

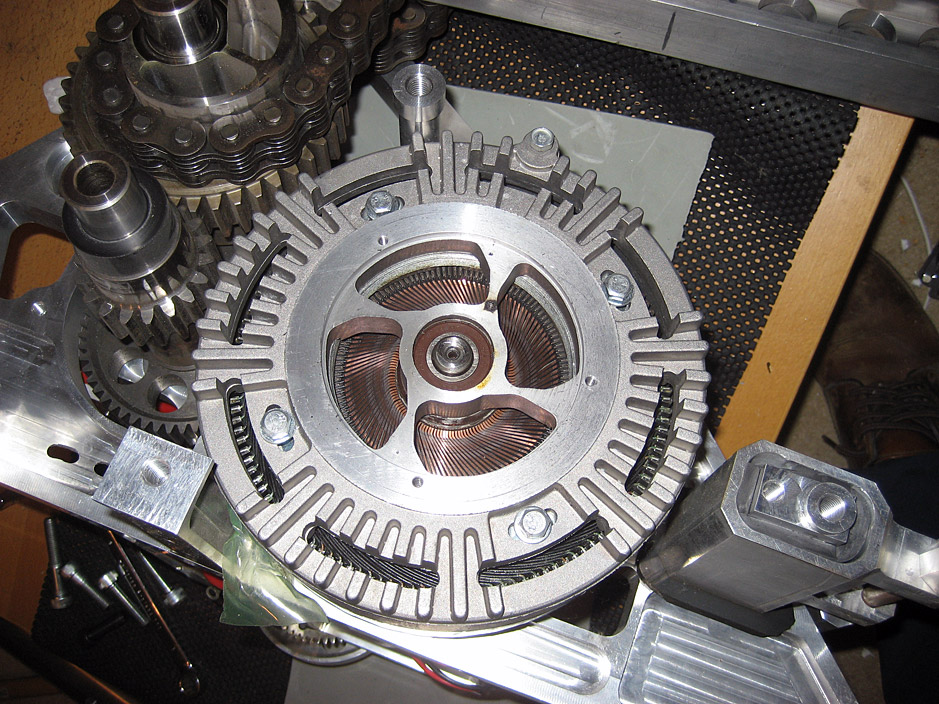

  1. Remove the three long bolts that retain the black brush holder. No need to note the position - due to the bolt spacing, there is only one way it can go back.
  2. Note/mark the position of the four magnet plate retaining bolts in their slots. As can be seen here, mine were central.
  3. Remove the four 10mm af bolts that retain the magnet plate. Be careful to catch the plain and spring washer on each.
  4. Remove the single 10mm af motor case bolt.

The motor back plate can now be rotated if you tap on it with a soft hammer, but there is no obvious way to remove it - no gap to prise it off.

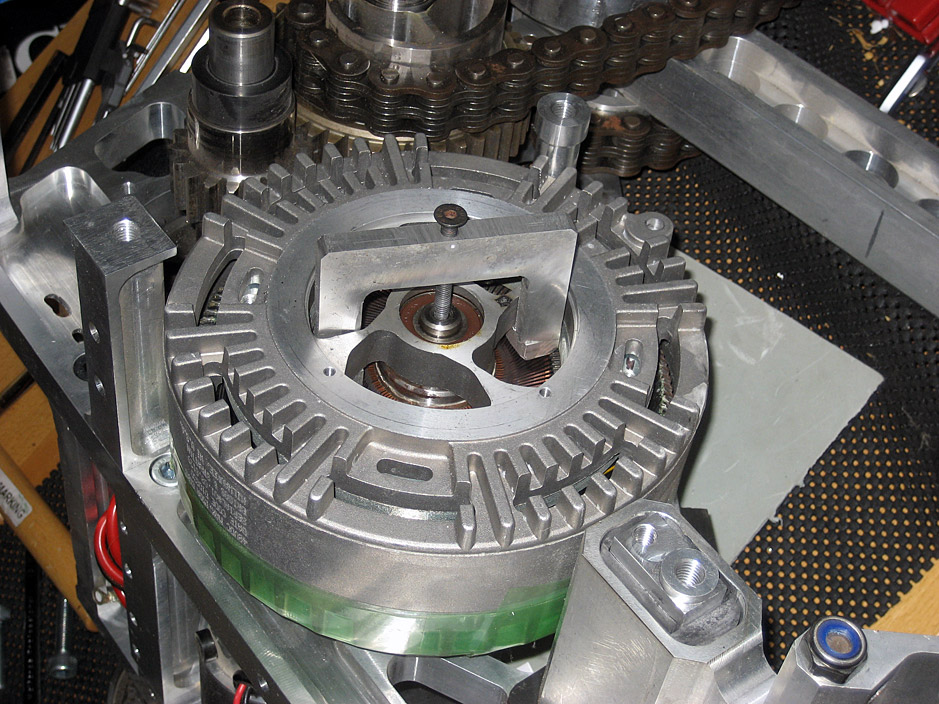

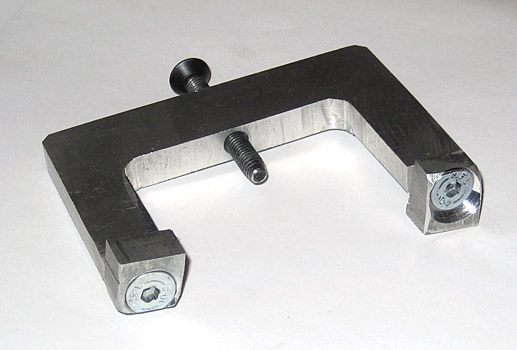

So I took some measurements and made up a simple two leg puller out of some 10mm ally plate. It hooks under the bars that support the central bearing.

etek1
etek1

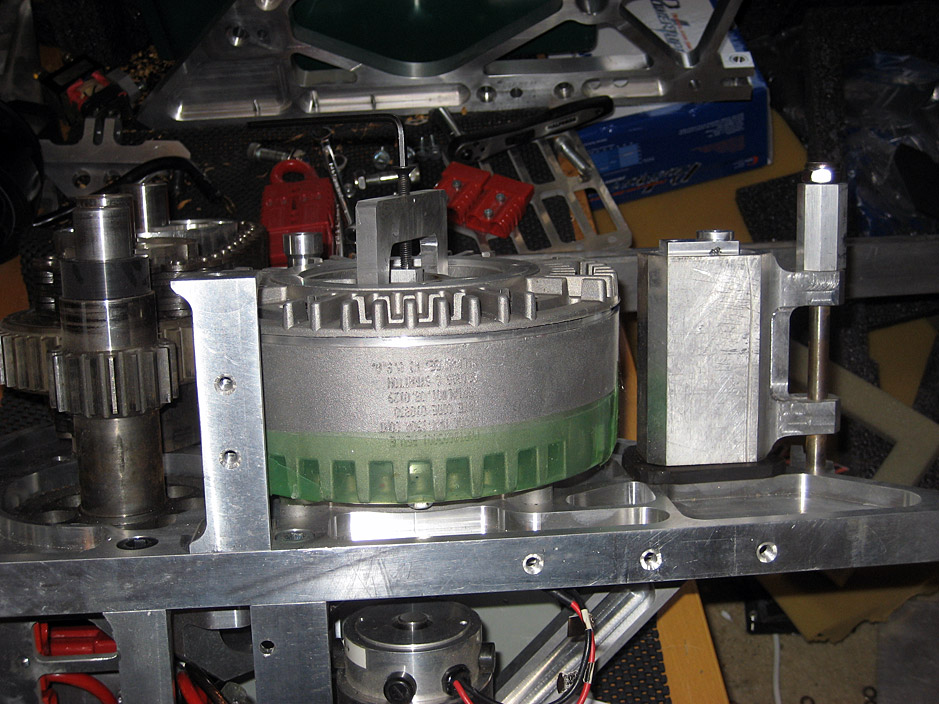

Using the puller, the back plate comes off quite easily. Make sure it comes off straight.

etek1

I thought that there might be a big O ring retaining the back plate, but it seems that it just a light interference fit.

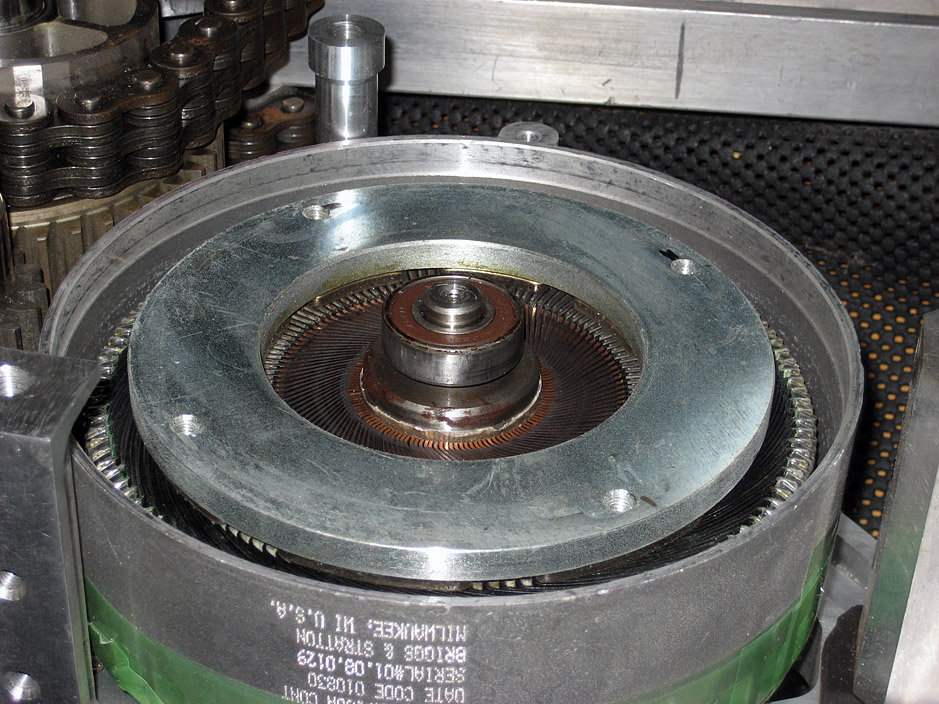

Here you can see the chunky steel magnet backing plate and the neo magnets.

etek1

As soon as you get the back off, you should mark the position of the magent plate, in case the armature spins round. Make sure that when you re-assemble the motor, it is in the same position relative to the case.
